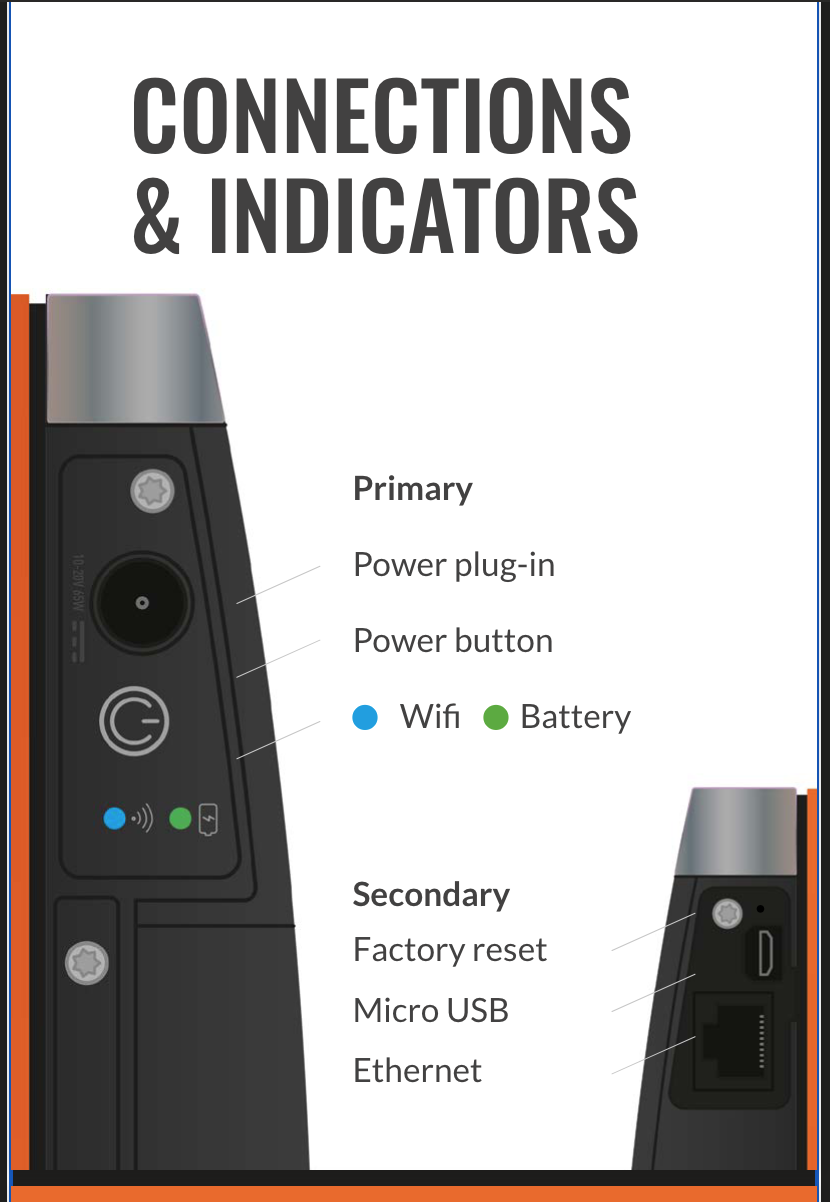

Primary Connections

Located underneath the B1 unit:

• Power plug-in
• Power button
• Wi-Fi indicator (blue light)
• Battery indicator (green light)

Secondary Connections

Located on the opposite side of the radar:

• Factory reset button
• Micro USB port
• Ethernet port

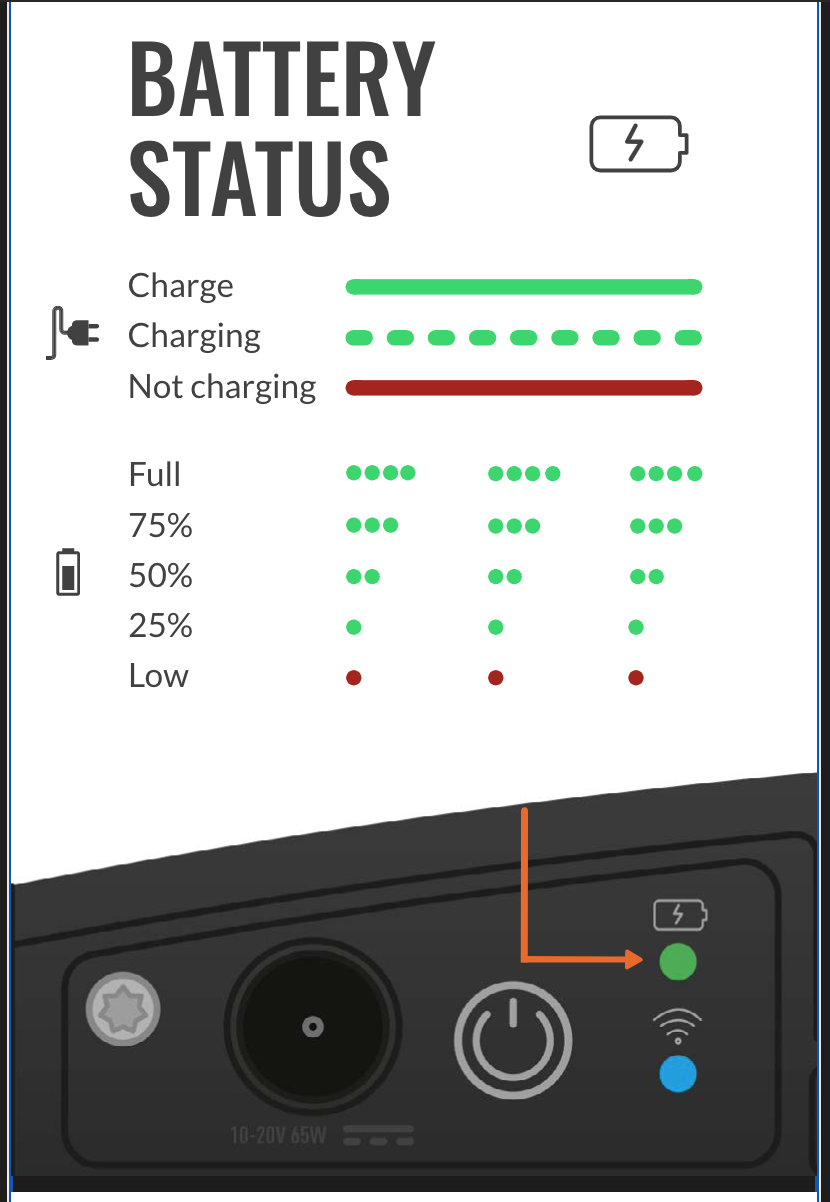

Battery Status Indicator

The battery indicator light communicates the battery level and charging status.

Charging Status

• Charged: Constant green light
• Charging: Blinking green light
• Not charging / error: Constant red light

Battery Level

• Full: Blinking green 4 times
• 75%: Blinking green 3 times
• 50%: Blinking green 2 times
• 25%: Blinking green once
• Low battery: Blinking red

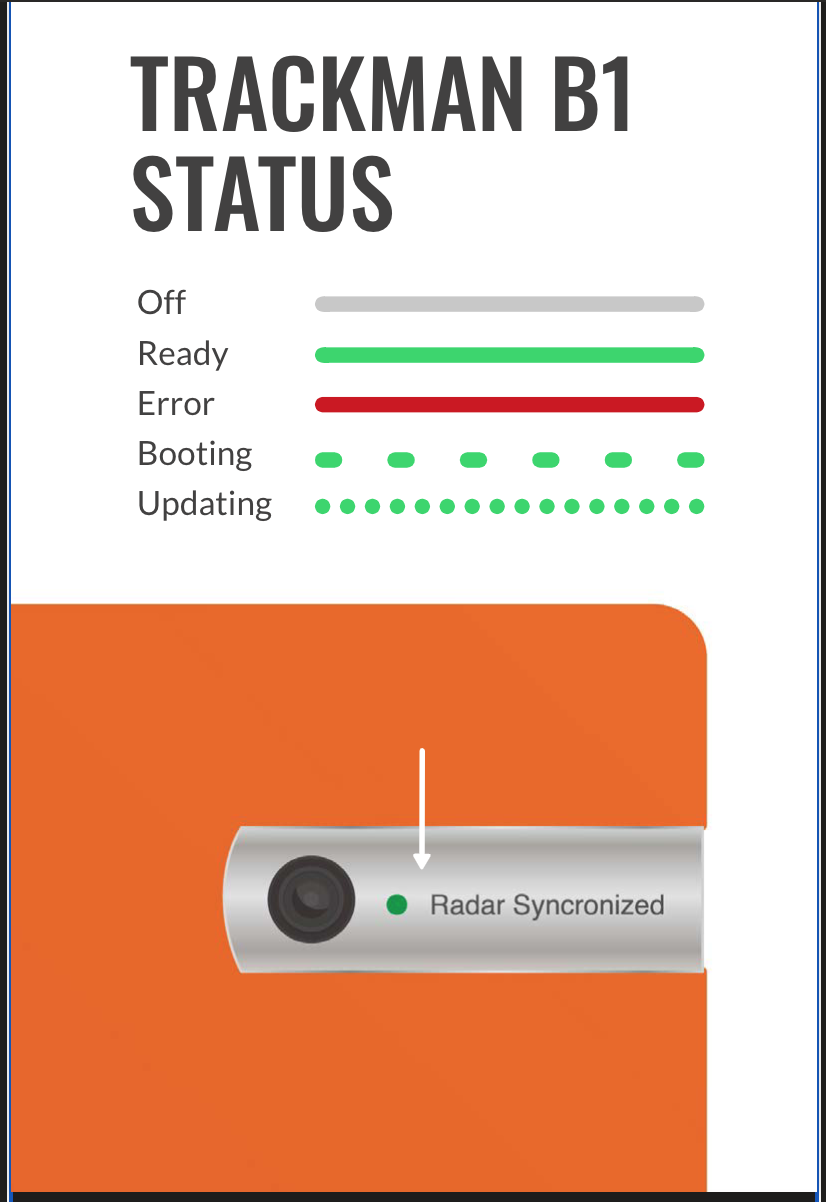

Trackman B1 Status Indicator (Camera Light)

The status light located by the camera indicates the operational state of the unit.

• Off: No light
• Ready: Constant green light
• Error: Constant red light
• Booting: Blinking green light
• Updating: Rapid blinking green light
